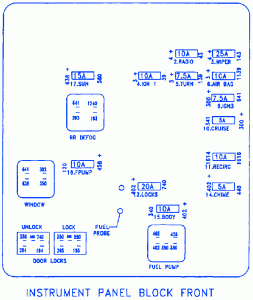

Saturn SW2 2005 Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSE MAP | AMPS |
|---|---|---|
| 2 | RADIO | 10A |
| 3 | WIPER | 25A |
| 4 | IGN 1 | 10A |
| 5 | TURN | 7.5A |
| 6 | AIR BAG | 10A |
| 9 | IGN 3 | 7.5A |
| 10 | CRUISE | 5A |
| 11 | RECIRC | 10A |
| 12 | LOCKS | 20A |
| 14 | CHIME | 5A |
| 15 | BODY | 10A |
| 17 | SUN | 15A |
| 18 | FPUMP | 10A |
Saturn SW2 2005 Fuse Panel/Board – Fuse Symbol Map
