Saturn Sky Floor Console 2007 Fuse Box/Block Circuit Breaker Diagram
| Fuses | Usage |
|---|---|
| 1 | Fuse Puller |
| 2 | Empty |
| 3 | Empty |
| 4 | Empty |
| 5 | Empty |
| 6 | Amplifier |
| 7 | Cluster |
| 8 | Ignition Switch, Passkey III+ |
| 9 | Stoplamp |
| 10 | Climate Control System, Passkey III+ |
| 11 | Empty |
| 12 | Spare |
| 13 | Airbag |
| 14 | Spare |
| 15 | Wiper |
| 16 | Climate Control System, Automatic Occupant Sensing Module, Clutch Switch, Crank Relay, Instrument Panel Cluster |
| 17 | Empty |
| 18 | Empty |
| 19 | Electric Power Steering, Steering Wheel Controls |
| 20 | Spare |
| 21 | Spare |
| 22 | Empty |
| 23 | Radio |
| 24 | Sensing and Diagnostic Module |
| 25 | Engine Control Module, Transmission Control Module |
| 26 | Door Locks |
| 27 | Interior Lamps |
| 28 | Steering Wheel Control Backlighting |
| 29 | Power Windows |
| 30 | Climate Control System |
| 31 | Empty |
| 32 | Retained Accessory Power |

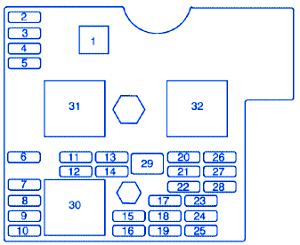

Saturn Sky Floor Console 2007 Fuse Panel/Board – Fuse Symbol Map
