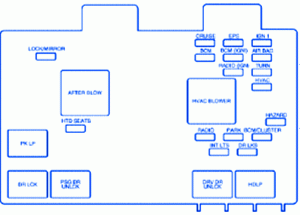

Saturn Aura 2007 Instrument Panel Fuse Box/Block Circuit Breaker Diagram

Saturn Aura 2007 Instrument Panel Fuse Box/Block Circuit Breaker Diagram



FUSESUSAGE
RADIORadio, Data Link Connector
BCM/CLSTRBody Control Module, Instrument Cluster
INT LTSBody Control Module, Onstar
PARKPark Lamps, Taillamps, Side Marker Lamps, License Lamps
HZRDHazard Lamps
DR LCKDoor Lock Relay
LOCK/MIRRORPower Door Locks, Power Mirror, Entry Control
TURNTurn Lamps
BCMBody Control Module, Front Wipers, Windows, Sunroof
RADIO IGNRadio, Power Mirror, Premium Radio Amplifier
HVACHVAC Control Head
IGN 1Instrument Cluster, BTSI Solenoid, Traction Switch, Fog Lamp Switch
BCM(IGN)Body Control Module
AIRBAGSDM Module
EPSElectronic Power Steering
CRUISECruise Control Switch, Brake Switch
HTD SEATSHeated Seats
