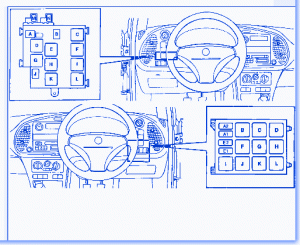

Saab 900S 2002 Steering Fuse Box/Block Circuit Breaker Diagram

Saab 900S 2002 Steering Fuse Box/Block Circuit Breaker Diagram



LHDRHDFunction (Component Number)
AE2Relay, Rear Fog Light Disconnection(246)
B-Relay, Reversing Light (405)
CBShift Lock Relay (437)
DKIntermittent Wiper Operation Relay, Rear Window(83A)
EHRelay, Ignition Switch(21)
FCRelay, EXH Warning (416)
GLRelay, Intermittent Windscreen Wiper Operation (83)
HGRelay, Electrically Heated Rear window(113)
IFFuel Pump Relay (102)
JARelay, Washer Fluid Pump (432)
KDStarter Relay (517)
LJMain Relay, Engine Management System (229)
NE1Relay, Electrically Heated Rear Seat (511)

Saab 900S 2002 Steering Fuse Panel/Board – Fuse Symbol Map
