Renault Vel Satis Dashboard Fuse Box / Block Circuit Breaker Diagram

Renault Vel Satis Dashboard Fuse Box / Block Circuit Breaker Diagram
Renault Vel Satis Dashboard Fuse Box / Block Circuit Breaker Diagram

TrackDescription
RELAY
REL2Heated rear screen
REL7Front fog lights
REL9Windscreen wiper
REL10Windscreen wiper
REL11Rear wiper through reversing lights
REL12Central locking
REL13Central locking
REL18Timed interior lighting
REL19Accessories feed
REL21Starter inhibition
REL22Computer/+ after ignition feed
REL23Accessories, after-sales fitted radio/rear electric windows
Shunt
SH1Rear electric windows
SH2Front electric windows
SH3Daytime running lights (dipped beam headlights)
SH4Daytime running lights (side lights)

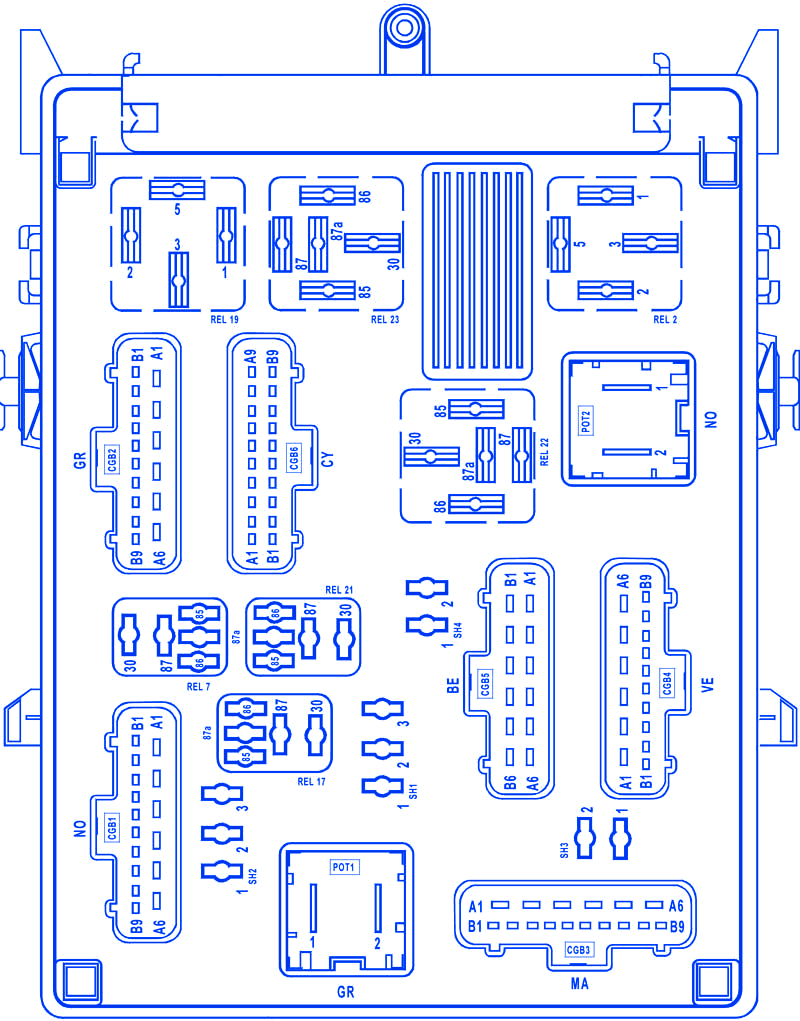

Renault Vel Satis Dashboard Fuse Panel / Board – Fuse Symbol Map
