Renault Twingo 2000 Engine Compartment Fuse Box / Block Circuit Breaker Diagram

Renault Twingo 2000 Engine Compartment Fuse Box / Block Circuit Breaker Diagram
Renault Twingo 2000 Engine Compartment Fuse Box / Block Circuit Breaker Diagram

NumberAmpere rating [A]Protected components
RELAY
150ASequential gearbox
250AFan assembly (with air conditioning)
325ALow speed fan (with air conditioning)
4
525AAir conditioning compressor
625AFan assembly (except air conditioning)
725AInjection locking
825AFuel pump

NumberAmpere rating [A]Protected components
FUSES
930ASequential gearbox
10
1140AAir conditioning
1230AAnti-lock braking system
1330AElectrical power-assisted steering
1460APassenger compartment
1560APassenger compartment
1620ASequential gearbox
1730AAnti-lock braking system
1810AInjection
19
2025AInjection
2115AInjection

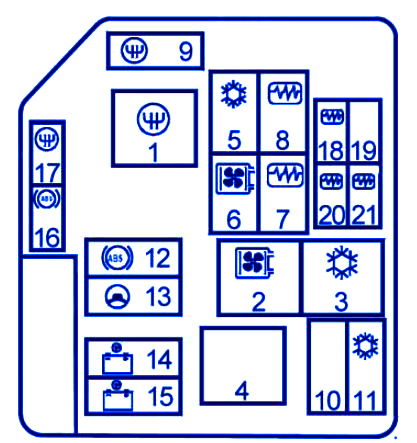

Renault Twingo 2000 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
