Renault Modus 2004 Engine Compartment Fuse Box / Block Circuit Breaker Diagram
Fuse
Ampere riting [A]
Description
100
25
ABS computer or Electronic Stability Program
101
—
—
102
10
Right-hand main beam headlights
103
10
Left-hand main beam headlights
104
10
Right-hand side light – rear right-hand light – right-hand heated seat control – electronic stability programme on/off button – rear right-hand electric window control – climate control control panel -air conditioning control unit – central door locking switch – CD changer – speed limiter on/off control – on right-hand drive version: – driver’s dual rear electric window control – child safety lock control – driver’s dual front electric window control – electric door mirror control – passenger electric window control
105
10
Left-hand side light – rear left-hand light – left-hand heated seat control – right-hand license plate light – left-hand license plate light – first row cigarette lighter – headlight height adjustment control – rear left-hand electric window control – radio – gear lever display – poor traction control – on left-hand drive version: – driver’s dual rear electric window control – child safety lock control – driver’s dual front electric window control – electric door mirror control – passenger electric window control
106
15
Shift pattern control – UPC – auxiliary heater relay – power assisted steering / gear lever display diagnostic socket – hands-free kit – radio telephone central unit – driving school monitor control – central unit Tyre pressure monitor / central unit discharge bulbs

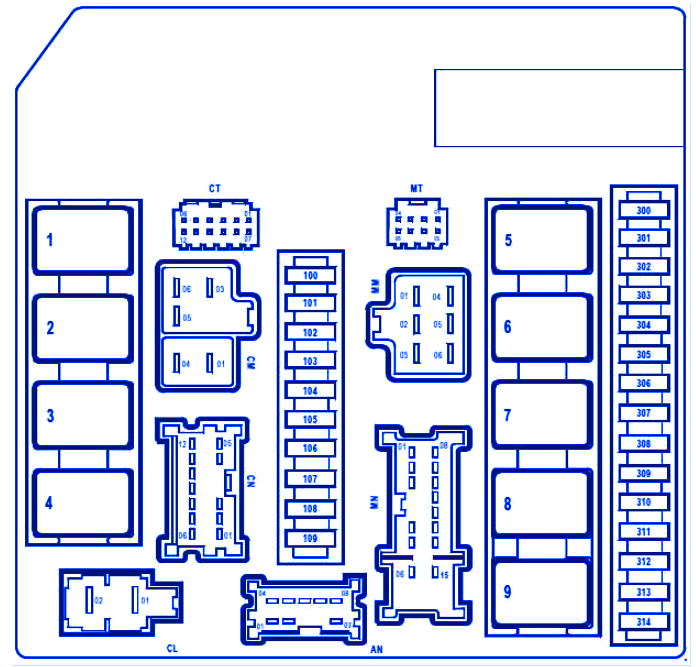

Renault Modus 2004 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
Fuse
Ampere riting [A]
Description
107
20
Windscreen wiper motor
108
15
Right-hand headlight / right-hand headlight adjustment motor
109
15
Left-hand headlight / left-hand headlight adjustment motor
