| Number | Shunt |
|---|---|
| SH1 | — |
| SH2 | ADR shunt |
| SH3 | Daytime lights shunt |
| Number | Ampere rating [A] | Shunt |
|---|---|---|
| F61 | 50A | Windscreen defrosting |
| F200 | 200A | Power supply (before master switch) |

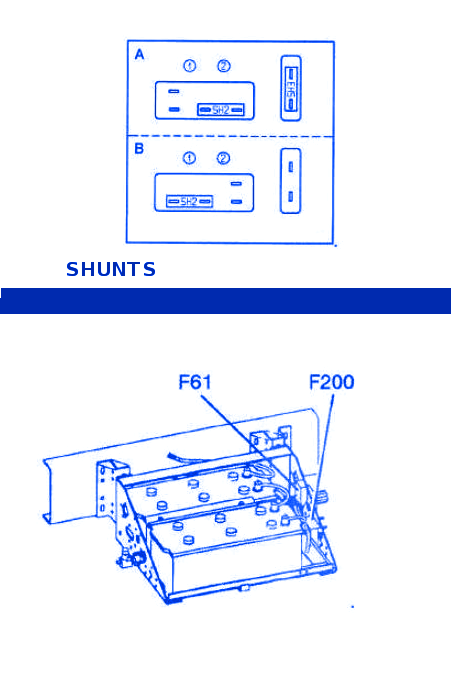

Renault Midlum 2005 Shunts Fuse Panel / Board – Fuse Symbol Map
Jul 10
Renault Midlum 2005 Shunts Fuse Box / Block Circuit Breaker Diagram
