Renault Master 1997 Compartment Fuse Box / Block Circuit Breaker Diagram

Categories:

Fuse Box Diagram, Renault

by Pad Rust

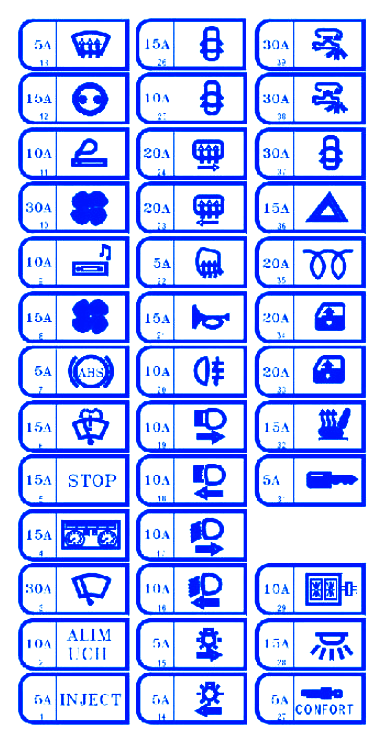

Renault Master 1997 Compartment Fuse Box / Block Circuit Breaker Diagram
Renault Master 1997 Compartment Fuse Box / Block Circuit Breaker Diagram

FuseAmpere riting [A]Description
F15Injection computer + after ignition feed – starter relay – gearbox computer – after ignition relay 1 – diagnostic socket
F210UCH supply – first row cigarette lighter -door locking – heated rear screen – idle speed regulator – rear fog light relay – gear selector light – air conditioning control panel – cruise control – cruise control stop switch – variable damping – headlight adjustment – heated windscreen deicing – parking proximity sensor computer -cruise control – gearbox load control – controlled suspension computer
F330Washer / wiper combination switch – UCH
F415Instrument panel – pretensioner and airbag computer – Tachograph
F515Brake switch – alternator – reversing light switch – reversing light relay
F615Washer/wiper combination switch – windscreen wiper motor
F75ABS – vehicle speed sensor
F815Air conditioning control relay – diesel heater relay – engine fuse board (position B track 4, for additional adaptations on reversal bornier (16-seater bus))
F910Radio – multifunction display – car phone communication interface – central communication unit
F1030Air conditioning control panel
F1110Cigarette lighter
F1215Accessories socket
F135Injection computer – reversal bornier for additional adaptations (16-seater bus)
F145Left-hand side light – left-hand rear light – multifunction display – central communication unit
F155Right-hand side light – right-hand rear light – right-hand number plate light – caravan connection – Tachograph – instrument panel
F1610Left-hand dipped beam headlight – headlight adjustment control – instrument panel
F1710Right-hand dipped beam headlight
F1810Left-hand main beam headlight – instrument panel
F1910Right-hand main beam headlight
F2010Rear fog light relay – caravan connection

Renault Master 1997 Compartment Fuse Panel / Board – Fuse Symbol Map

FuseAmpere riting [A]Description
F2115Horn
F225Heated door mirrors
F2320Heated right-hand rear quarter panel
F2420Heated left-hand rear quarter panel
F251016-seater bus: Front door electric locking
F261516-seater bus: Rear right-hand door electric locking
F275except 16-seater bus: Controlled suspension computer
F2815Tachograph – instrument panel – alarm siren – diagnostic socket – alarm sensor UCH
F2910Radio – multifunction display – car phone communication interface – central communication unit
F30——
F315Impact sensor – UCH
F3215Heated front seats – electric door mirror control
F3320Driver’s control for front passenger electric window – passenger electric window control
F3420Electric window timer
F3520Diesel heater relay
F3615except 16-seater bus: Hazard warning lights 16-seater bus: Hazard warning lights – Tachograph – instrument panel – alarm siren – diagnostic socket – alarm sensor
F3730Door control
F383016-seater bus: Consumer cut-out (fuse F36 supply)
F3930Consumer cut-out (supply to fuses F27, F28, F29 and F31)

Renault Master 1997 Compartment Fuse Panel / Board – Fuse Symbol Map
