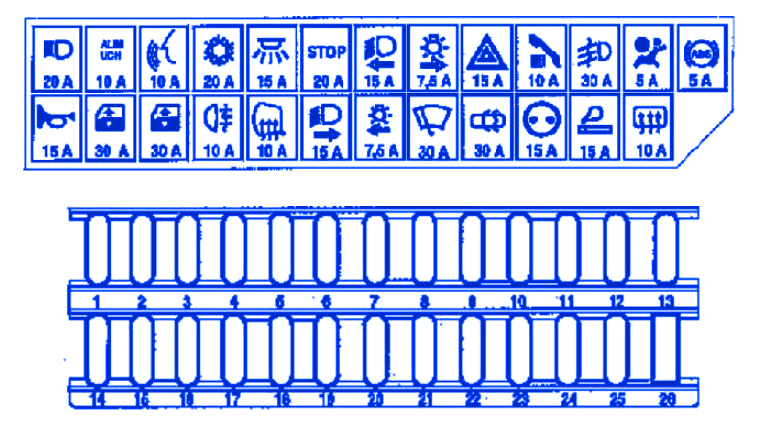

Renault Espace 2002 On The Dashboard Fuse Box / Block Circuit Breaker Diagram

Number	Ampere rating [A]	Allocation
F1	—	—
F2	10	UCH supply – Card reader – Starter push button – Automatic parking brake
F3	10	Voice synthesiser – Xenon bulb beam adjustment – Instrument panels -Demisting jets – Headlight adjustment tumblewheel
F4	20	Reversing lights – Heating and air conditioning – Parking aid – + After ignition alarm signal – Switch control lighting – Rain sensor – Electrochrome door mirrors – Air conditioning compressor – Wiper motor signal
F5	15	Timed interior lighting
F6	20	Brake lights – Wiper stalk – Diagnostic socket – Child locking indicator – Rear electric lock indicator – Electric window switches lighting – cruise control -Hands-free kit connection
F7	15	Left-hand dipped beam headlight – Xenon bulb computer – Beam adjustment motor
F8	7,5	Right-hand side light
F9	15	Hazard warning lights and indicators
F10	10	Communication system – Radio – Driving position memory – Seat relay – Rear electric window relay feed
F11	30	Voice synthesiser – Instrument panel – Front fog lights – Air conditioning

Number	Ampere rating [A]	Allocation
F12	5	Airbags and pretensioners
F13	5	ABS computer – Electronic Stability Program
F14	15	Audible alarm (beeper)
F15	30	Driver’s side front window lift – Electric door mirrors
F16	30	Passenger’s electric window
F17	10	Rear fog lights
F18	10	Heated door mirrors
F19	15	Right-hand dipped headlight
F20	7,5	Left-hand side light – Lighting dimmer and glove box – Registration plate lighting -Cigarette lighter lighting – Switch lighting except doors and hazard warning lights – Parking brake control lighting
F21	30	Main beam headlights and rear wiper
F22	30	Central door locking
F23	15	Console accessories sockets
F24	15	Cigarette lighter
F25	10	Steering column lock – Heated rear screen relay supply
