Renault Clio Sport Tourer 2015 Fuse Box / Block Circuit Breaker Diagram

Renault Clio Sport Tourer  2015 Fuse Box / Block Circuit Breaker Diagram
Renault Clio Sport Tourer 2015 Fuse Box / Block Circuit Breaker Diagram

FuseAllocation
1Front windscreen wiper, controls under steering wheel
2Front left-hand daytime running lights, right-hand side lights, left-hand main beam headlight, right-hand dipped beam headlight, front fog lights
3Interior lighting, registration plate lighting, fog lights
4Right-hand side lights, rear side lights
5Left-hand side lights, front side lights
6Dipped beams, front right-hand daytime running light, left-hand side lights, right-hand main beam headlight
7Left-hand dipped beam headlight
8Right-hand main beam headlight
9Left-hand main beam headlight, steering column controls
10Steering column controls, speed limiter/cruise control, interior rear-view mirror, belt warning module, Parking sensor, additional heating, electric headlight beam adjustment, rear screen de-icer
11Central door locking, rain and light sensor, steering wheel angle sensor, vehicle start button, electric rear windows
12Courtesy light, boot light, air conditioning, electric windows
13ABS-ESC, brake switch
14Steering column controls, brake switch
15Horn
16Rear fog lights
17Cigarette lighter

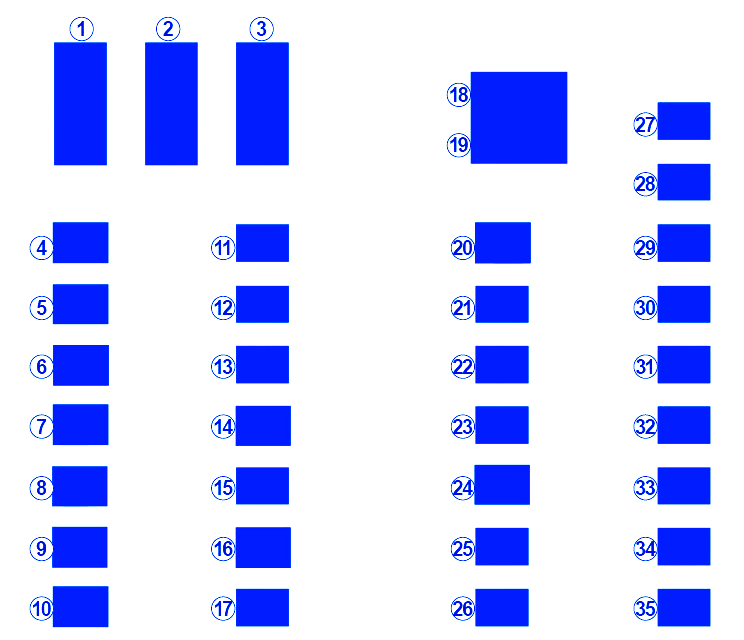

Renault Clio Sport Tourer 2015 Fuse Panel / Board – Fuse Symbol Map

FuseAllocation
18Radio and multimedia, diagnostic socket
19Power-assisted steering
20GPL
21Airbag, electric locking of steering column
22Injection, starting, fuel pump
23Brake switch, rear screen wiper, passenger compartment ECU
24Daytime running lights
25Electric headlight beam adjustment, rear screen, heating, parking sensor, cruise control, radio, heated seat, seat belt warning
26Automatic gearbox
27Reversing light, rear screen wiper, passenger compartment ECU, Automatic gearbox
28Instrument panel
29Steering column controls, Alarm
30Air conditioning, steering column controls, energy ECU
31Wipers, rear reversing lights, energy ECU
32Central locking of opening elements
33Direction indicator lights
34Passenger compartment ECU, hands-free access
36Interior lighting, electric windows, air conditioning, electric door mirrors, brake lights, ABS, passenger compartment ECU
