Range Rover TF 160 1992 Compartment Fuse Box/Block Circuit Breaker Diagram
| Fuse | Rating, Amperes | Function |
|---|---|---|
| F1 | 10A | Instrument Pack, EPAS ECU, Multi-Function ECU, Hazard Warning Switch, Automatic gearbox, Indicator Lamp, Cigar Lighter Relay, Seat Belt Switch |
| F2 | 10A | Cigar Lighter Relay |
| F3 | - | - |
| F4 | 15A | RH front Window Switch (LHD Vehicles), Window Lift ECU (RHD Vehicles) |
| F5 | 15A | Window Lift ECU (LHD Vehicles) LH Front Window Switch (RHD Vehicles) |
| F6 | 10A | Engine Bay Cooling Fan Relay, Front Window Lift Relay |
| F7 | 10A | RH Head Lamp and Tail Lamp |

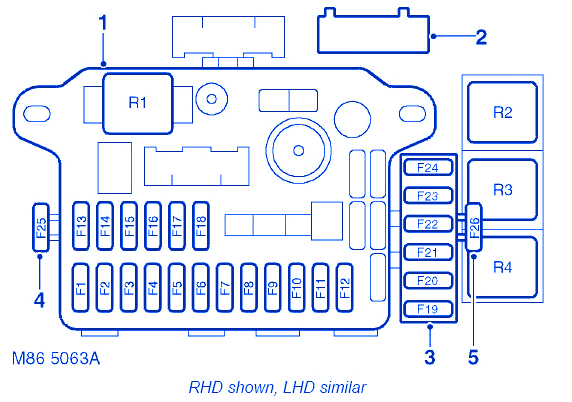

Range Rover TF 160 1992 Compartment Fuse Panel/Board – Fuse Symbol Map
