Range Rover MK-1 2008 Main Fuse Box/Block Circuit Breaker Diagram
| FUSE NO. | RATING | WIRE COLOUR | FUNCTION |
|---|---|---|---|
| M | 15A | U/G | R.H Headlamp |
| N | 15A | U/K | L.H Headlamp |
| O | 15A | P | Horns, Brake Lamp Switch |
| P | 10A | U/N | Hazard Warning |
| Q | 15A | P/N | ABS Over Voltage Relay |
| R | 30A | P/N | ABS Modulator Valve Relay |
| S | 10A | N/B | Alternator |
| T | 25A | N/R | Blower Fan Assembly |
| U | 15A | N | Main Fuel Relay |
| V | 20A | N/LG | Headlamp Power Wash |
| W | 25A | N/Y | Heated Rear Window Timer Relay |
| X | 30A | N/O | Air Conditioning Compressor Clutch Relay |
| Y | 30A | N/W | Cooling Fan Relay |

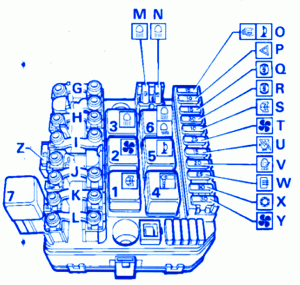

Range Rover MK-1 2008 Main Fuse Panel/Board – Fuse Symbol Map
