Range Rover MG TF 160 2008 Compartment Fuse Box/Block Circuit Breaker Diagram

Range Rover MG TF 160 2008 Compartment Fuse Box/Block Circuit Breaker Diagram



FuseRating, AmperesFunction
F110AInstrument Pack, EPAS ECU, Multi-Function ECU, Hazard Warning Switch, Automatic gearbox, Indicator Lamp, Cigar Lighter Relay, Seat Belt Switch
F210ACigar Lighter Relay
F3--
F415ARH front Window Switch (LHD Vehicles), Window Lift ECU (RHD Vehicles)
F515AWindow Lift ECU (LHD Vehicles) LH Front Window Switch (RHD Vehicles)
F610AEngine Bay Cooling Fan Relay, Front Window Lift Relay
F710ARH Head Lamp and Tail Lamp

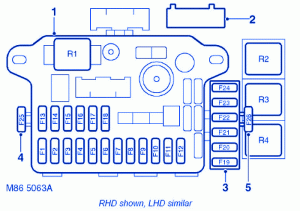

Range Rover MG TF 160 2008 Compartment Fuse Panel/Board – Fuse Symbol Map
