Range Rover Fascia 2011 Main Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Rating | Wire Colour | Function |
|---|---|---|---|
| 1. | 20A | N/O | Sunroof, Driver Seat Heater |
| 2. | 20A | S/U | Drivers Front Door Window Lift |
| 3. | 20A | S/R | Passengers Front Door Window Lift |
| 4. | 20A | P/N | Front and Rear Cigar Lighter Relay Rear Wiper E.C.U |
| 5. | 10A | P | Interior Lamps, Boot Lamp, Interior Lamp Delay Unit, Map Lamps, trip Computer Memory, Radio Station Memory, Clock Memory, Hot Restart E.C.U |
| 6. | 20A | P/O | Burglar Alarm E.C.U, Central Locking E.C.U |
| 7. | 15A | R/O | R.H Number Plate Lamp, R.H side, Tail Lamps, Trailer Plug |
| 8. | 15A | R/B | Cigar Lighter Illumination L.H Number Plate Lamp, Side Lamp Warning Lamp, Glovebox Lamp, Trailer Plug, Fascia Illumination, L.H Side Rear Lamps |
| 9. | 20A | S/O | L.H Rear window Lift |
| 10. | 20A | S/G | R.H Rear Window Lift |
| 11. | 10A | LG/S | ABS Over Voltage Protection Relay |
| 12. | 10A | W/R | EFI Relay, EFI E.C.U |

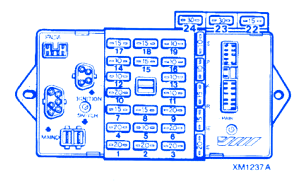

Range Rover Fascia 2011 Main Fuse Panel/Board – Fuse Symbol Map
