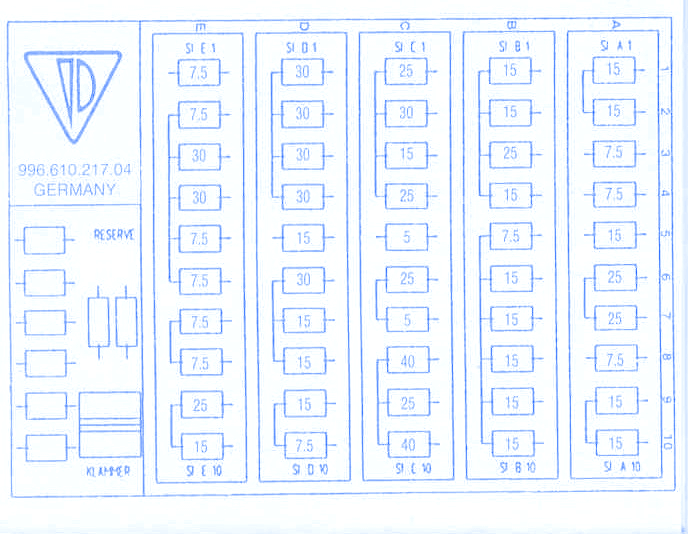

Porsche Panamera 2007 Primary Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| Fuse Assignments | |
| ROW A | |
| 1 | High Beam Headlight, Right, High Beam Indicator Light |
| 2 | High Beam Headlight, Left |
| 3 | Side Lights, Right |
| 4 | Side Lights, Left |
| 5 | Instrument Illumination, Locating Light, Number Plate Light (Not Canada), Fog Light(Japan), Rear Fog Light (Japan) |
| 6 | Seat Heating |
| 7 | Fog Lights (Not Japan), Rear Fog Lights (Not Japan) |
| 8 | Number Plate Light (Canada) |
| 9 | Dipped Beam Headlight, Right |
| 10 | Dipped Beam Headlight, Left |
| 2 | Hazard Warning Lights |
| 3 | Two-Tone Horns |
| 4 | Engine Compartment Fan |
| 5 | Reversing Light, ConvertibleTop Control unit (911), Out Side Mirror Adjustment, Memory Control Unit |
| 6 | Directio Indicator Lights, Power Windows, Convertible Top (Boxster) |
| 7 | Brake Light, Cruise Control |
| 8 | Central Locking/Alarm System Control Unit, Engine Electronics Control Unit, Tiptronic Control Unit |
| 9 | ABS/ASR/PSM Control Unit |
| 10 | Instrument Cluster, Diagnosis, Headlight Beam Adjustment |

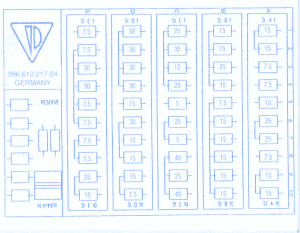

Porsche Panamera 2007 Primary Fuse Panel/Board – Fuse Symbol Map
