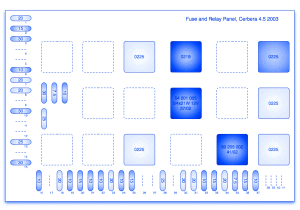

Porsche Cerbera 2006 Fuse Box/Block Circuit Breaker Diagram
| Fuse | Description | Amps |
|---|---|---|
| 1 | Dip Beam and Dim Dip | 20A |
| 2 | Sidelights and Rear Fog Light | 15A |
| 3 | Engine Fan 1 | 30A |
| 4 | - | - |
| 5 | - | - |
| 6 | Horn | 10A |
| 7 | Master Ignition | 20A |
| 8 | Main Beam | 20A |
| 9 | - | - |
| 10 | Starter Solenoid | 30A |
| 11 | - | - |
| 12 | - | - |
| 13 | Heated Rear Screen | 25A |
| 14 | - | - |
| 15 | Engine Fan 2 | 30A |
| 16 | Hazard Lights | 10A |
| 17 | - | - |
| 18 | Door Lock ECU & Drivers Window | 20A |
| 19 | - | - |
| 20 | Boot Light, Courtesy Light & Cigarette Lighter | 15A |
| 21 | Passenger Lock & Boot Lock | 10A |
| 22 | - | - |
| 23 | Drivers Lock & Passenger Window | 20A |
| 24 | Gauges, Mirrors, Radio & Dim Dip | 10A |
| 25 | Indicators, Reserve & Brake Lights | 15A |
| 26 | - | - |
| 27 | - | - |
| 28 | Heating & Ventilation System | 25A |
| 29 | - | - |
| 30 | Ignition Coils | 20A |
| 31 | Wiping & Steering Wheel ECU | 20A |
| 32 | Immobiliser | 10A |
| 33 | Injector & Engine ECU | 15A |
| 34 | Fuel Pump, Lambda Heaters & Purge Can | 20A |
| 35 | Lambdas | 15A/7.5A |
| 36 | Alarm | 15A |
| 37 | Engine ECU Backup & Steering Wheel ECU Suppression | 10A |
| 38 | - | - |
| 39 | - | - |
| 40 | - | - |
| 41 | - | - |

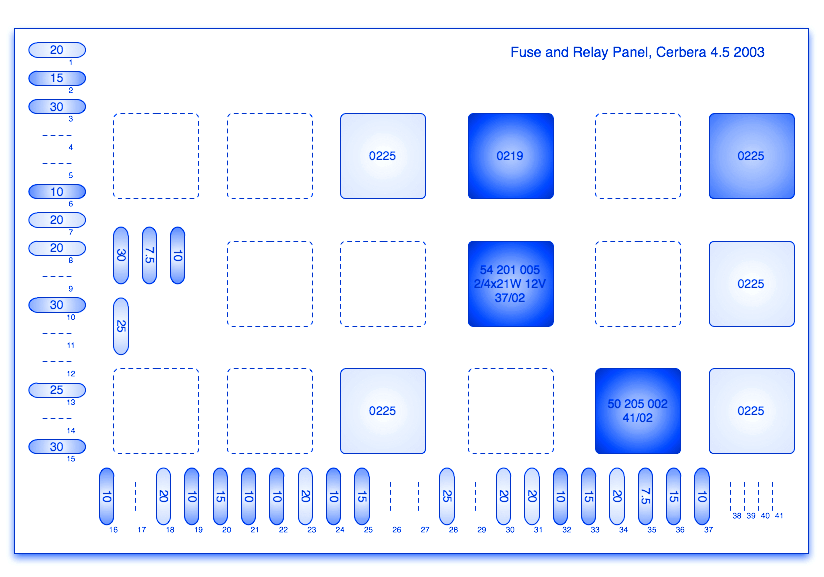

Porsche Cerbera 2006 Fuse Panel/Board – Fuse Symbol Map
