Porsche Cayenne 2006 Engine Fuse Box/Block Circuit Breaker Diagram



NOVALUEDESIGNATION
FUSE HOLDER A
SI A115AHigh Beam Right, High Beam Control
SI A215AHigh Beam Left
SI A37.5ASide Marker Light Right
SI A47.5ASide Marker Light Left
SI A515ALicense Plate Lights Locating Light Instrument Lighting
SI A625ASeat Heater
SI A725AFog Light Rear Fog Light
SI A87.5ALicense Plate Lights Canada
SI A915ALow Beam Right
SI A1015ALow Beam Left
FUSE HOLDER C
SI C125AEngine Electronics
SI C230AIgnition Injection Heater Oxygen Sensors
SI C315ACU Alarm-CL Power Window Inside Light
SI C430AFuel Pump
SI C55AEngine Compartment Blower Stage1
SI C625AWiper
SI C77.5ATerm.X Control Wires
SI C840ARadiator Fan Right
SI C925AHeadlight Cleaning System
SI C1040ARadiator Fan Left
FUSE HOLDER E
SI E17.5ATerm,86S/CU Alarm-CL/Radio/Cluster/Infosystem/Daytime Runnning Light
SI E27.5ACU Memory
SI E330APower Seat CU Memory Left
SI E430APower Seat CU Memory Right
SI E57.5AInfosystem
SI E67.5ATerm,30 Telephone/Handy Navigation ORVR
SI E77.5AAir Conditioning System Heater
SI E87.5ATerm,15 Telephone/Handy Infosytem Navigation System
SI E925ACU PSM
SI E1015AButton PSM

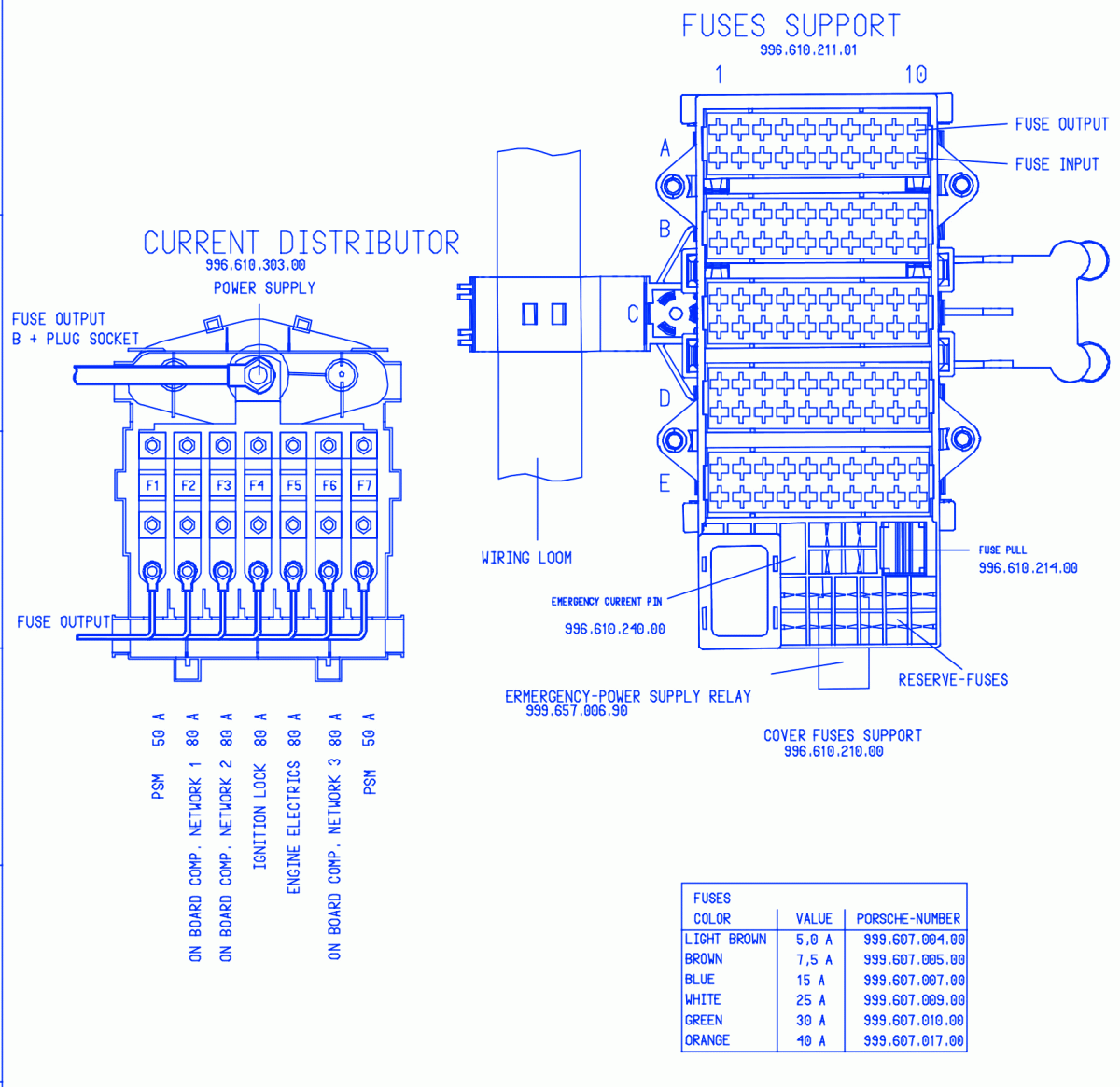

Porsche Cayenne 2006 Engine Fuse Panel/Board – Fuse Symbol Map
