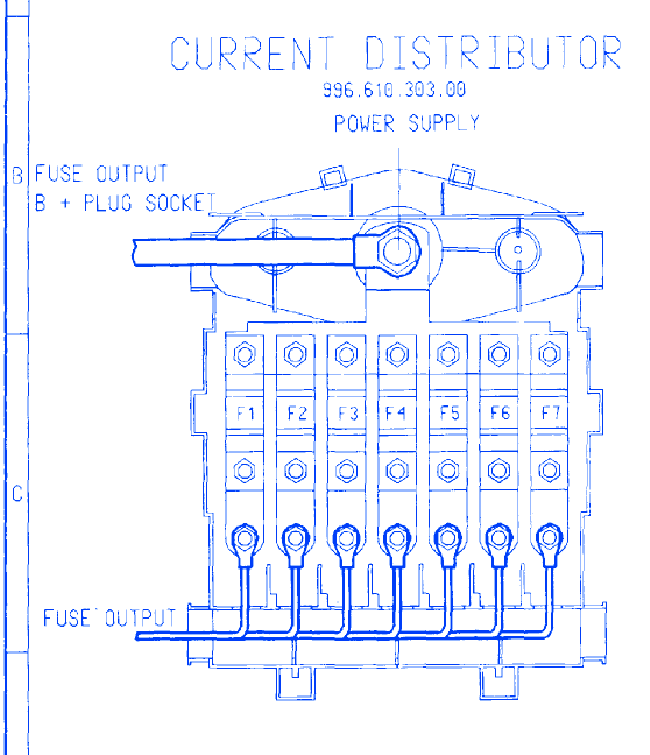

Porsche Boxter 2007 Current Distribution Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Rating | Fuse Map |
|---|---|---|
| F1 | 50A | PSM |
| F2 | 80A | On Board Comp Network 1 |
| F3 | 80A | On Board Comp Network 2 |
| F4 | 80A | Ignition Lock |
| F5 | 80A | Engine Electrics |
| F6 | 80A | On Board Comp Network 3 |
| F7 | 50A | PSM |
Porsche Boxter 2007 Current Distribution Fuse Panel/Board – Fuse Symbol Map
