Porsche 944 1988 Main Fuse Box/Block Circuit Breaker Diagram

Porsche 944 1988 Main Fuse Box/Block Circuit Breaker Diagram



SymbolDescription
1A/C Blower Shut-Off Relay
2Spare
3Rear Window Defogger Relay
4Turn Signal/Hazard Flasher Relay
5DME/Fuel Pump Relay
6A/C Condenser Fan Relay
7Power Window Relay
8Warning Relay
9Intermittent Wiper Relay
10Coolant Fan Relay
11Fog Lamp Relay
12Headlight & Motor Relay
13Horn Relay
14Fog Lamp Relay
15Headlight Washer Motor Relay
16Buzzer Relay
17A/C Relay
18Sunroof Relay

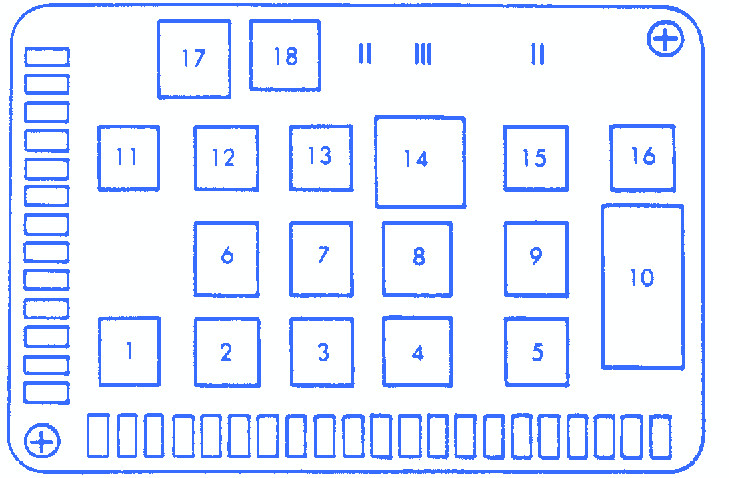

Porsche 944 1988 Main Fuse Panel/Board – Fuse Symbol Map
