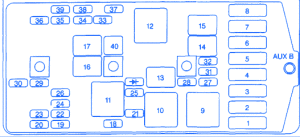

Pontiac Trans Sport 1998 Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | RATING | FUSE/RELAY MAP |
|---|---|---|
| MAXIFUSES | ||
| 1 | 30A | COOL FAN2 |
| 2 | - | - |
| 3 | 60A | HEADLAMPS |
| 4 | 60A | BATT MAIN2 |
| 5 | 40A | IGN MAIN1 |
| 6 | 30A | COOL FAN1 |
| 7 | 60A | BATT MAIN1 |
| 8 | 60A | IGN MAIN2 |
| MINI RELAYS | ||
| 9 | - | COOL FAN |
| 10 | - | COOL FAN2 |
| 11 | - | IGN MAIN |
| 12 | - | COOL FAN1 |
| MICRO RELAYS | ||
| 13 | - | A/C CLU |
| 14 | - | FUEL PUMP |
| 15 | - | F/PMP SPD CONT |
| 16 | - | HORN |
| 17 | - | FOG LAMP |
| MINIFUSES | ||
| 18 | 10A | INJ |
| 19 | - | SPARE |
| 20 | - | SPARE |
| 21 | 15A | IGN1, UH |
| 22 | - | SPARE |
| 23 | - | SPARE |
| 24 | - | SPARE |
| 25 | 15A | ELEK IGN |
| 26 | - | SPARE |
| 27 | 10A | B/U LAMP |
| 28 | 10A | A/C CLU |
| 29 | 10A | RADIO |
| 30 | 10A | ALT SENSE |
| 31 | 10A | TCC |
| 32 | 15A | FUEL PUMP |
| 33 | 10A | ECM SENSE |
| 34 | - | Not Used |
| 35 | 10A | FOG LP |
| 36 | 15A | HORN |
| 37 | 20A | PARK LP |
| 38 | - | Not Used |
| 39 | - | Not Used |
| DIODES | ||
| - | A/C CLU DIODE | |
| 40 | - | MINI FUSE PULLER |
Pontiac Trans Sport 1998 Fuse Panel/Board – Fuse Symbol Map
