Pontiac Grand Prix 2002 Under The Hood Fuse Box/Block Circuit Breaker Diagram

Pontiac Grand Prix 2002 Under The Hood Fuse Box/Block Circuit Breaker Diagram



FuseDescription
FUTURESpare
PARK LPChime/Mall Module, Taillamps, Park Lamps, Side marker Lamps, Dimmable Lamps
FOG LPFog Lamps
FUTURESpare
ECMECM/PCM
FUEL PMPFuel Pump
TCCAutomatic Transaxle: Enable, Switch, Shift, PWM
ALTAll Sense
RADIORadio, Remote Lock Control, Theft Shock Sensor, Trip Computer, HVAC Module, ABS Module, Security LED
AC CLUAC Clutch
B/U LPTrunk Release, Back-Up Lamps
DFIIgnition Module
IGNI-UHMAF, Heated Sensors, Canister, Boost Solenoid
INJFuel Injectors

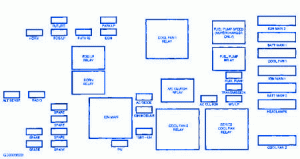

Pontiac Grand Prix 2002 Under The Hood Fuse Panel/Board – Fuse Symbol Map
