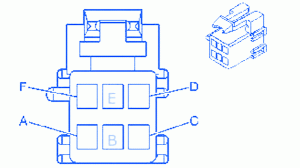

Pontiac Firehawk 1994 Connector Electrical Circuit Wiring Diagram

Pontiac Firehawk 1994 Connector Electrical Circuit Wiring Diagram



PinWire ColorCircuit No.Function
ATAN/WHT816A/T Shift Lock Solenoid Control
BORN/BLK1786Ignition 1 Voltage
CLT BLU1134Ignition Lock Cylinder Control Actuatrol Signal
D--Not Used
EDK GRN/WHT1135A/T Shift Lock Control Solenoid Supply Voltage
FPPL1600Ignition 0 Voltage

Pontiac Firehawk 1994 Connector Electrical Circuit Symbol Map
