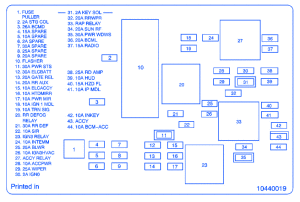

Pontiac Aztek 1999 Main Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | AMPS | DESCRIPTION |
|---|---|---|
| 1 | FUSE PULLER | |
| 2 | 2A | STG COL |
| 3 | 26A | BCMD |
| 4 | 15A | SPARE |
| 5 | 10A | SPARE |
| 6 | 2A | SPARE |
| 7 | 30A | SPARE |
| 8 | 25A | SPARE |
| 9 | 20A | SPARE |
| 10 | FLASHER | |
| 11 | 30A | PWR STS |
| 12 | 30A | ELCBATT |
| 13 | 20A | GATE REL |
| 14 | 20A | RR AUX |
| 15 | 10A | ELCACCY |
| 16 | 10A | HTDMIRR |
| 17 | 10A | PWR MIR |
| 18 | 10A | IGN 1 MDL |
| 19 | 10A | TRN SIG |
| 20 | RR DEFOG RELAY | |
| 21 | 30A | RR DEF |
| 22 | 10A | SIR |
| 23 | IGN3 RELAY | |
| 24 | 10A | INTEMM |
| 25 | 25A | BLWR |
| 26 | 10A | IGN3HVAC |
| 27 | ACCY RELSY | |
| 28 | 10A | ACCPWR |
| 29 | 25A | WIPER |
| 30 | 2A | IGN0 |
| 31 | 2A | KEY SOL |
| 32 | 20A | RRWPR |
| 33 | RAP RELAY | |
| 34 | 20A | SUN RF |
| 35 | 30A | PWR WDWS |
| 36 | 20A | BCML |
| 37 | 15A | RADIO |
| 38 | 25A | RD AMP |
| 39 | 10A | HUD |
| 40 | 15A | HZD FL |
| 41 | 10A | IP MDL |
| 42 | 10A | INKEY |
| 43 | ACCY | |
| 44 | 10A | BCM |

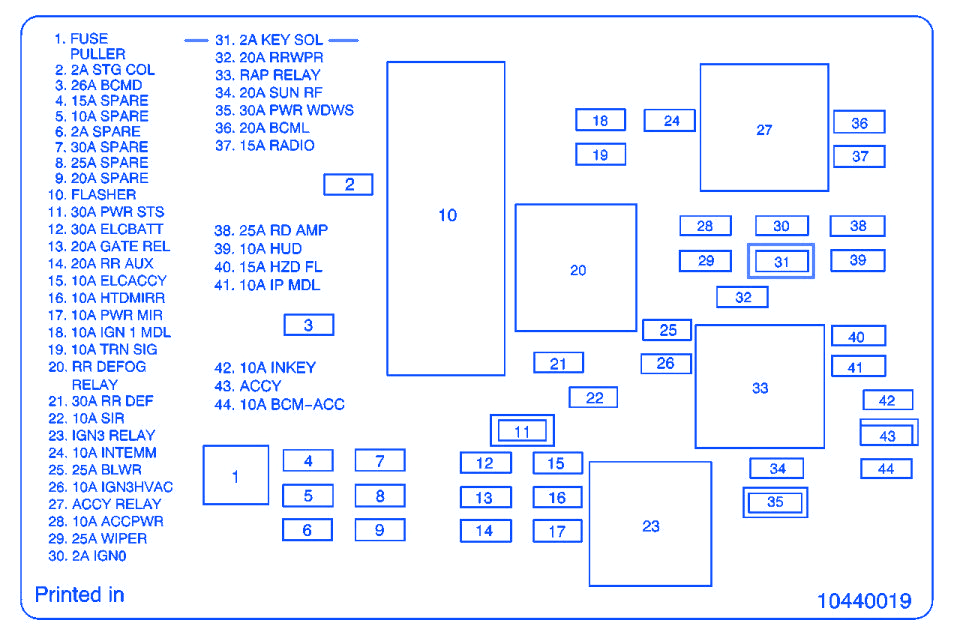

Pontiac Aztek 1999 Main Fuse Panel/Board – Fuse Symbol Map
