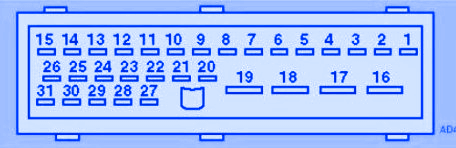

Peugeot 306 2002 Under Dash Fuse Box/Block Circuit Breaker Diagram
| Symbol | Map |
|---|---|
| H29 | ABS Warning Lamp |
| 31 | Battery - |
| 30 | Battery + |
| S13 | Brake Pedal Position (BPP)Switch |
| X1 | Data Link Connector (DLC) |
| A16 | Electronic Control Unit (ECU) |
| F | Fuse |
| FL | Fusible Link |
| Y22 | Hydraulic Modulator |
| 15 | Ignition Switch - Ignition ON |
| A5 | Instrument Panel |
| M61 | Pump Motor |
| K100 | Pump Motor Relay |
| K38 | System Relay |
| B19 | Wheel Speed sensor, Left Front |
| B21 | Wheel Speed sensor, Left Rear |
| B20 | Wheel Speed sensor, Righ Front |
| B22 | Wheel Speed sensor, Right Rear |
Peugeot 306 2002 Under Dash Fuse Panel/Board – Fuse Symbol Map
