Oldsmobile Regency 1994 Under The Hood Fuse Box/Block Circuit Breaker Diagram

Oldsmobile Regency 1994 Under The Hood Fuse Box/Block Circuit Breaker Diagram

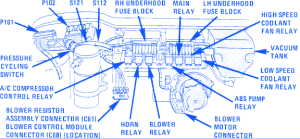

FUSE/RELAY MAP
-RH Underhood Fuse Block
-LH Underhood Fuse Block
-A/C Compressor Control Relay
-Horn Relay
-Blower Relay
-ABS Pump Relay
-Main Relay
-High Speed Coolant Fan Relay
-Low Speed Coolant Fan Relay
-Blower Resistor Assembly Connector
-Blower Motor
-Vacuum Tank

Oldsmobile Regency 1994 Under The Hood Fuse Panel/Board – Fuse Symbol Map
