Oldsmobile Intrigue V6 2003 Panel Dimming Fuse Box/Block Circuit Breaker Diagram
| FUSE MAP | AMPS |
|---|---|
| ABS | 20A |
| LOW BLOWER | 20A |
| TURN SIGNALS CORN LPS | 10A |
| RADIO, HVAC, RFA CLUSTER, DATA LINK | 15A |
| HIGH BLOWER | 30A |
| RH HEATED SEAT | 15A |
| CRANK SIGNAL BCM, CLUSTER | 10A |
| HVAC | 10A |
| BTSI | 10A |
| AIR BAG | 15A |
| BCM | 10A |
| HAZARD | 15A |
| LH HEATED SEAT | 15A |
| RED STRG WHL ILLUM | 2A |
| WIPER | 25A |
| CRUISE | 10A |
| CLUSTER | 10A |
| CIGAR LTR AUX POWER | 20A |
| STOP LAMPS | 15A |
| FRT PARK LPS | 10A |
| POWER DROP | 10A |
| IGN CLUSTER PCM & BCM | 10A |
| INACV POWER BUS/RAP | 15A |
| DOOR LOCKS | 20A |
| ON/START | 15A |
| TAIL LAMPS LIC LAMPS | 15A |
| RADIO, CRUISE | 2A |
| PCM, BCM, U/H RELAY | 10A |
| POWER MIRRORS | 2A |
| PANEL DIMMING | 7.5A |
| PWR WINDOWS PWR SUNROOF | 30A |
| REAR DEFOG | 30A |
| POWER SEATS | 30A |

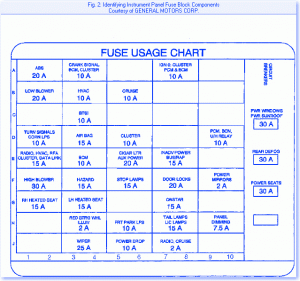

Oldsmobile Intrigue V6 2003 Panel Dimming Fuse Panel/Board – Fuse Symbol Map
