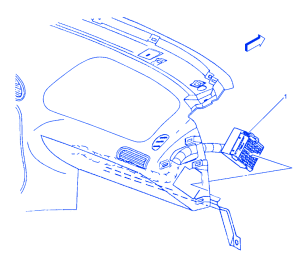

Oldsmobile Intrigue 2000 Fuse Box/Block Circuit Breaker Diagram
| FUSE MAP | AMPERE |
|---|---|
| ABS | 20A |
| LOW BLOWER | 20A |
| ABS | 10A |
| TURN SIGNALS CORN LPS | 10A |
| RADIO, HVAC, RFA CLUSTER,DATA LINK | 15A |
| HIGH BLOWER | 30A |
| CRANK SIGNAL BCM, CLUSTER | 10A |
| HVAC | 10A |
| BTSI | 10A |
| AIR BAG | 15A |
| ABS,BCM | 10A |
| HAZARD | 15A |
| RED STRG WHL ILLUM | 2A |
| WIPER | 25A |
| CRUISE | 10A |
| CLUSTER | 10A |
| CIGAR LTR AUX POWER | 20A |
| STOP LAMPS | 15A |
| FRT PARK LPS, FOG LAMPS | 10A |
| POWER DROP | 10A |
| IGN 0:CLUSTER PCM & BCM | 10A |
| DRL | 10A |
| INADV POWER BUS | 15A |
| DOOR LOCKS | 20A |
| TAIL LAMPS, LIC LAMPS | 15A |
| RADIO, CRUISE | 2A |
| PCM, BCM, U/H RELAY | 10A |
| CD CHANGER | 10A |
| POWER MIRRORS | 2A |
| PANEL DIMMING | 7.5A |
| PWR WINDOWS, PWR SUNROOF | 30A |
| REAR DEFOG | 30A |
| POWER SEATS | 30A |
Oldsmobile Intrigue 2000 Fuse Panel/Board – Fuse Symbol Map
