Nissan XE V6 1998 Electrical Circuit Wiring Diagram
| Description | |
|---|---|
| - | To (A/T Model) |
| - | Back-Up Lamp Switch (M/T Model) |
| - | Neutral Position Switch(M/T Model) |
| - | Transfer Switch (4WD M/T Model) |
| - | Vehicle Speed sensor (A/T Model) |
| - | Vehicle Spees Sensor (M/T Model) |
| Battery Cable | |
| - | Battery |
| - | To |
| - | To (With Adjustable Shock Absorber) |
| - | Starter Motor |
| - | Front Adjustable Shock Absorber RH |
| - | Oil Pressure Switch |
| Alternator Harness | |
| - | Body Ground |
| - | Alternator |
| - | Front Shock Absorber LH (Wagon) |

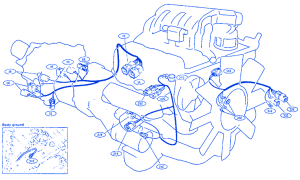

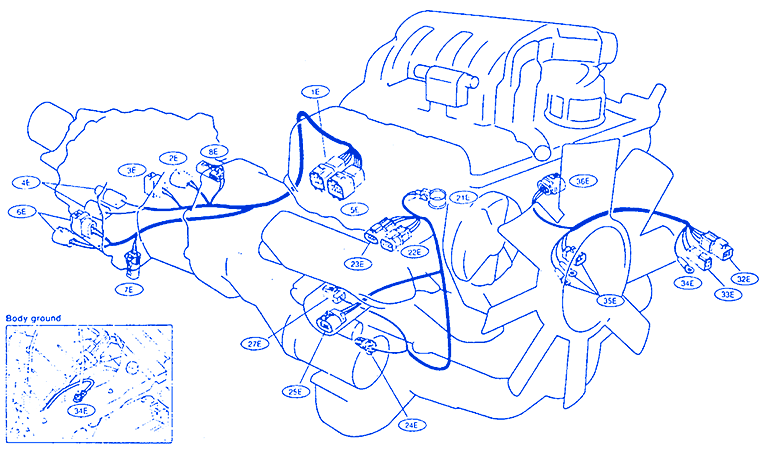

Nissan XE V6 1998 Electrical Circuit Symbol Map
