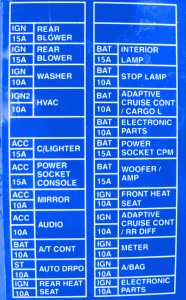

Nissan Skyline R33 1997 Interior Fuse Box/Block Circuit Breaker Diagram
| AMPS | FUSE MAP | |
|---|---|---|
| 15A | IGN | REAR BLOWER |
| 15A | IGN | REAR BLOWER |
| 10A | IGN | WASHER |
| 10A | IGN2 | HVAC |
| 15A | ACC | C/LIGHTER |
| 15A | ACC | POWER SOCKET CONSOLE |
| 10A | ACC | MIRROR |
| 10A | ACC | AUDIO |
| 10A | BAT | A/T CONT |
| 10A | ST | AUTO DRPO |
| 10A | IGN | REAR HEAT SEAT |
| 15A | BAT | INTERIOR LAMP |
| 10A | BAT | STOP LAMP |
| 10A | BAT | ADAPTIVE CRUISE CONT/CARGO L |
| 10A | BAT | ELECTRONIC PART |
| 15A | BAT | POWER SOCKET CPM |
| 15A | BAT | WOOFER/AMP |
| 10A | IGN | FRONT HEAT SEAT |
| 10A | IGN | ADAPTIVE CRUISE CONT/RR DIFF |
| 10A | IGN | METER |
| 10A | IGN | A/BAG |
| 10A | IGN | ELECTRONIC PART |
Nissan Skyline R33 1997 Interior Fuse Panel/Board – Fuse Symbol Map
