Nissan Pulsar 1997 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map | Amps |
|---|---|---|
| LEFT | ||
| 1 | - | - |
| 2 | RR DEFOG | 20A |
| 3 | - | - |
| 4 | HAZARD | 10A |
| 5 | HORN | 10A |
| 6 | TAIL LAMP | 10A |
| 7 | RAD FAN MOTOR | 10A |
| 8 | METER | 10A |
| 9 | TURN | 10A |
| 10 | ELECTRON BAT | 10A |
| 11 | STOP LAMP | 10A |
| 12 | ROOM LAMP | 10A |
| 13 | ELECTRON IGN | 10A |
| Fuse Symbol | Fuse Map | Amps |
|---|---|---|
| RIGHT | ||
| 1 | TAIL LAMP-LH | 10A |
| 2 | TAIL LAMP-RH | 10A |
| 3 | STARTER | 10A |
| 4 | HEATER BLOWER MOTOR | 15A |
| 6 | WIPER | 20A |
| 7 | ENG CONT | 10A |
| 8 | FUEL PUMP | 10A |
| 9 | AUDIO | 10A |
| 10 | AIR CON | 10A |
| 11 | HEAD LAMP WIPER | 15A |
| 12 | CIG LIGHTER | 15A |
| 13 | SHIFT LOCK | 10A |

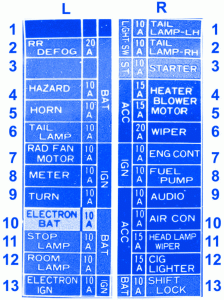

Nissan Pulsar 1997 Fuse Panel/Board – Fuse Symbol Map
