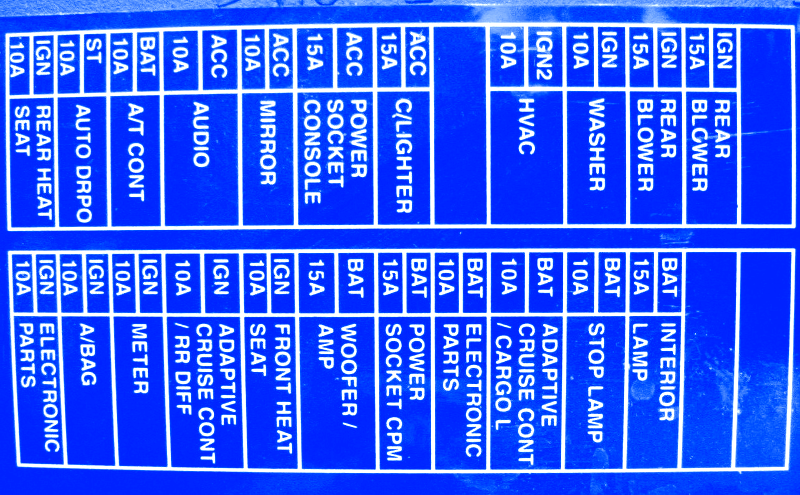

Nissan Leopard 2005 Fuse Box/Block Circuit Breaker Diagram

Nissan Leopard 2005 Fuse Box/Block Circuit Breaker Diagram



AMPSFUSEMAP
15AIGNREAR BLOWER
15AIGNREAR BLOWER
10AIGNWASHER
10AIGN2HVAC
15AACCC/LIGHTER
15AACCPOWER SOCKET CONSOLE
10AACCMIRROR
10AACCAUDIO
10ABATA/T CONT
10ASTAUTO DRPO
10AIGNREAR HEAT SEAT
15ABATINTERIOR LAMP
10ABATSTOP LAMP
10ABATADAPTIVE CRUISE CONT/CARGO L
10ABATELECTRONIC PART
15ABATPOWER SOCKET CPM
15ABATWOOFER/AMP
10AIGNFRONT HEAT SEAT
10AIGNADAPTIVE CRUISE CONT/RR DIFF
10AIGNMETER
10AIGNA/BAG
10AIGNELECTRONIC PART

Nissan Leopard 2005 Fuse Panel/Board – Fuse Symbol Map
