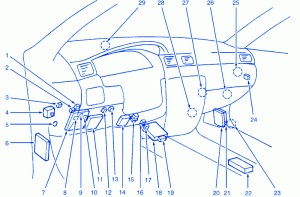

Nissan Cedric 2004 Under Dash Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| 1 | Sun Roof Relay |
| 2 | Power Window Relay |
| 3 | ASCD Hold Relay |
| 4 | Super Multiple Junction (SMJ) |
| 5 | Circuit Breaker |
| 6 | Transmission Control Module (A/T)(2.0L) |
| 7 | Fuse Block |
| 8 | Ignition Relay |
| 9 | Blower Relay |
| 10 | Accessory Relay |
| 11 | ASCD Control Unit |
| 12 | ASCD Brake Switch |
| 13 | Stoplight Switch |
| 16 | Warning Chime Unit (1.6L) |
| 17 | Rear Window Defogger Timer (1.6L) |
| 18 | ECCS Control Module (ECM) |
| 19 | ECCS Relay |
| 20 | ABS Control Unit |
| 21 | Daytime Light Control Unit (Canada) |
| 22 | Air Bag Diagnosis Sensor Unit |
| 23 | M71 |
| 24 | Intermittent Wiper Amplifier |
| 25 | M60 |
| 26 | M57, M58, M59 |
| 27 | M44 |
| 28 | M45 |
Nissan Cedric 2004 Under Dash Fuse Panel/Board – Fuse Symbol Map
