Nissan 300 ZX 1993 Passenger Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse Map |
|---|---|---|
| 1 | 20A | Speaker |
| 2 | 10A | Hazard Warning Light |
| 3 | 10A | Exterior Lights, Illumination, Time Control Unit, Dimmer Relay |
| 4 | 10A | Time Control Unit, Clock, Power Door Mirrors, Rear Washer & Wiper Motors |
| 5 | 20A | Cigarette Lighter |
| 6 | 10A | Audio, Power Antenna Timer |
| 7 | - | (1990-91) Blank |
| 10A | (1992-95) Air Bag Control Unit (If Equipped) | |
| 8 | 20A | Rear Window Defogger & Switch |
| 9 | 20A | Rear Window Defogger |
| 10 | 10A | Time Control Unit, Gauges, Warning Light, Rear Window Defogger |
| 11 | 7.5A | Heater & Air Conditioner, Theft Warning Control Unit |
| 12 | 20A | Front Washer & Wiper Motors |
| 13 | 15A | Blower Motor |
| 14 | 15A | Blower Motor |
| 15 | 10A | A/T Control Unit, Theft Warning Control Unit, Door Lock System, Auto A/C Control Amp.,Key Hole Illumination, Footlights, Audio, Clock, Warning Chime, Interior Lights, Spotlight, Power Antenna Timer |
| 16 | 7.5A | ECCS Control Unit |
| 17 | 15A | Power Steering Control Unit, Anti-Lock Brake System, In-Vehicle Sensor Aspirator |
| 18 | 10A | Turn Signal Lights |
| 19 | 10A | A/T Control Unit, Shift Lock Control Unit, Inhibitor Switch, Cruise Control, Back-Up Light, Power Antenna Timer |
| 20 | 7.5A | Semi-Automatic Seat Belt System |
| 21 | - | Blank |

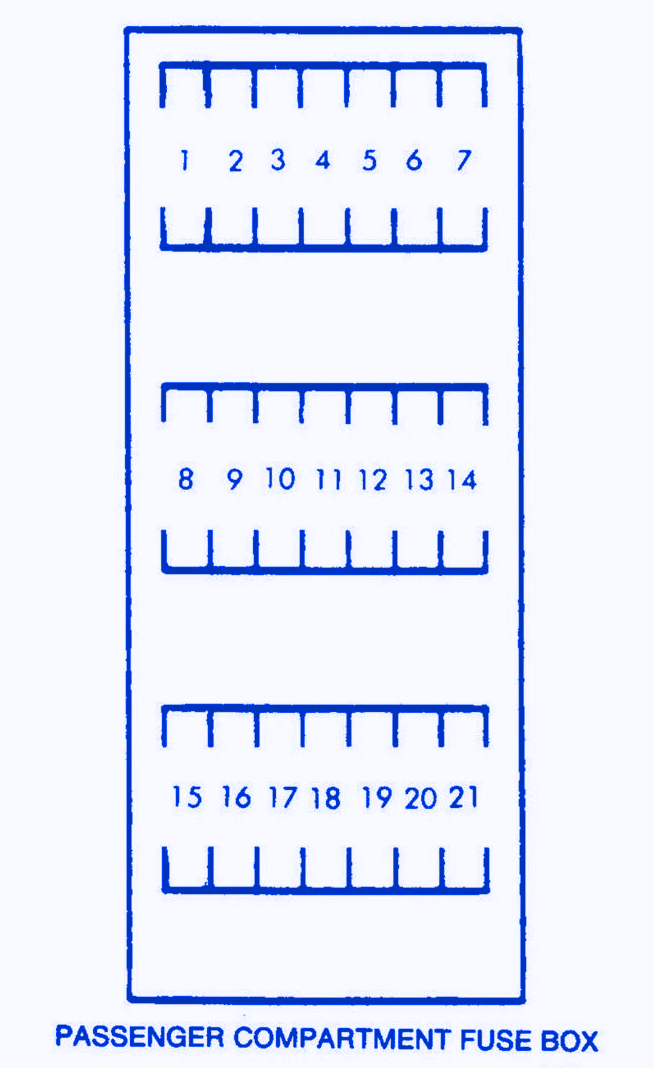

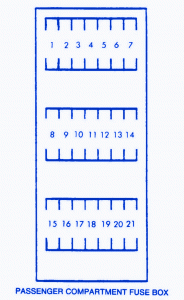

Nissan 300 ZX 1993 Passenger Fuse Panel/Board – Fuse Symbol Map
