Mustang V6 2009 Under The hood Fuse Box/Block Circuit Breaker Diagram
| Fuse Position | Amps | Circuits Protected | |
|---|---|---|---|
| A | FAN(3,8L) | 30A(C.b) | Constant Control Relay Module |
| FAN(4,6L) | 50A(Maxi) | Constant Control Relay Module | |
| B | HD-LPS | 30A(Maxi) | Main Light Switch, Multifunction Switch |
| C | IGN SW | 40A(Maxi) | Starter Motor Relay, Intake Runner Control Module, GEM, Over Drive Cancel Switch, Instrument Cluster |
| D | IGN SW | 40A(Maxi) | ABS Module, Instrument Cluster, Reversing Lamps, Speed Control Servo, GEM, Shift Lock Actuator, A/C Heater, Power Windows, Radio, Raise Relay, Lower Relay, Windshield Wiper Motor, Intermittent Wiper Relay, Wiper HIGH/LOW Relay |
| E | IGN SW | 40A(Maxi) | Restraints Control Module, DRL Module, A/C Heater, Blower Motor, Electronic Flasher |
| F | I/P | 40A(Maxi) | Instrument Cluster PCM |
| G | THERM | 30A(Maxi) | Secondary Air Injection |
| H | ABS1 | 50A(Maxi) | ABS Module |
| I | POWER POINT | 20A(Maxi) | Auxiliary Power Point |
| J | PARK LAMPS | 30A(Maxi) | Main Light Switch |
| K | HTD BL | 30A(Maxi) | Rear Window Defrost Control |
| L | POWER WINDOWS | 40A(Maxi) | GEM, Power Door Locks |
| M | AUDIO | 10A(Mini) | Radio, CD Player |
| N | ABS 2 | 20A(Mini) | ABS Module |
| O | FUEL PUMP | 20A(Mini) | Fuel Pump Relay |
| P | HORN | 20A(Mini) | Horn, Horn Relay |
| Q | POWER SEATS | 25A(Mini) | Power Seat Switch |
| R | ALT | 20A(Mini) | Generator |
| S | A/C PRESS | 20A(Mini) | Constant Control Relay Module |
| T | PCM POWER | 30A(Maxi) | Intake Manifold Runner Control |
| U | CONV TOP | 25A(C.b) | Convertible Top Raise/Lower Relay |
| V | FOG DRL | 20A(Maxi) | Daytime Running Lamps (DRL) Module/Fog Lamp Relay |

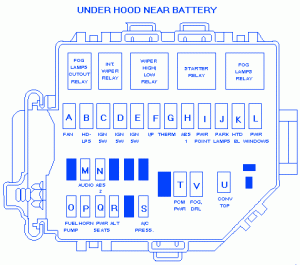

Mustang V6 2009 Under The hood Fuse Panel/Board – Fuse Symbol Map
