Mustang Mach1 2004 Primary Fuse Box/Block Circuit Breaker Diagram
| Fuse Position | Amps | Circuit Protected |
|---|---|---|
| 1 | 20A | Cigar Lighter |
| 2 | 20A | Engine Controls |
| 3 | - | Not Used |
| 4 | 10A | RH Low Beam Headlamp |
| 5 | 15A | Instrument Cluster, Traction Control Switch |
| 6 | 20A | Starter Motor Relay |
| 7 | 15A | GEM, Interior Lamps |
| 8 | 20A | Engine Controls |
| 9 | - | Not Used |
| 10 | 10A | LH Low Beam Headlamp |
| 11 | 15A | Reversing Lamps |
| 12 | - | Not Used |
| 13 | 15A | Electronic Flasher |
| 14 | - | Not Used |
| 15 | 15A | Power Lumbar Seats |
| 16 | - | Not Used |
| 17 | 15A | Speed Control Servo,Shift Lock Actuator |
| 18 | 15A | Electronic Flasher |
| 19 | 15A | Power Mirror Switch, GEM, Anti-theft Relay, Power Locks, Door Ajar Switches |
| 20 | 15A | Convertible Top Switch |
| 21 | 5A | PCM Instrument Cluster |
| 22 | - | Not Used |

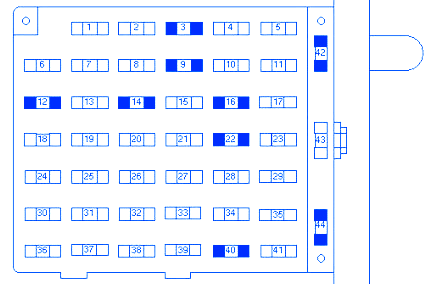

Mustang Mach1 2004 Primary Fuse Panel/Board – Fuse Symbol Map
