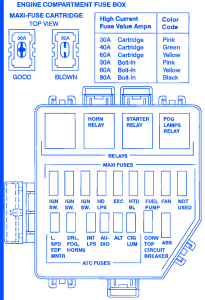

Mustang Driver 1995 Under Dash Fuse Box/Block Circuit Breaker Diagram

Mustang Driver 1995 Under Dash Fuse Box/Block Circuit Breaker Diagram



FUSEAMPSCIRCUITS PROTECTED
IGN SW40AIgnition Switch, Starter Relay
IGN SW40AIgnition Switch
IGN SW40AIgnition Switch
HD LPS50AExterior Lamps, I/P Fuse Panel
EEC20APowertrain Control Module, Constant Control Relay Module
HTD BL40ARear Window Defrost
FUEL PUMP20AFuel Pump
FAN60AElectric Cooling Fan Motor
ABS60AAnti-Lock Brake System
CONV TOP30A c.bConvertible Top
CIG ILLUM20APower Seats, Cigar Lighter, Auxiliary Power Socket
ALT20AAlternator
AUDIO25AIgnition Switch
INT LPS25AI/P Fuse Panel (Fuse 5,9)
DRL FOG HORN20AHorns, Fog Lamps, Daytime Running Lamps (DRL)
L SPD EDF MNT10AElectric Cooling Fan Motor

Mustang Driver 1995 Under Dash Fuse Panel/Board – Fuse Symbol Map
