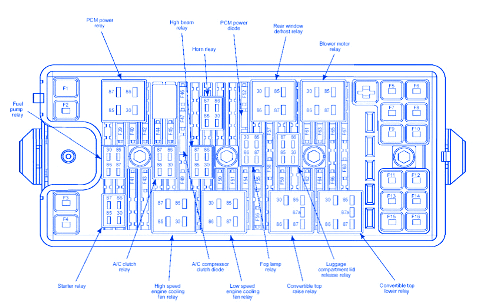

Mustang Boss 302 2010 Primary Fuse Box/Block Circuit Breaker Diagram
| Relay Map | |
|---|---|
| - | Fuel Pump Relay |
| - | PCM Power Relay |
| - | High Beam Relay |
| - | Horn Relay |
| - | PCM Power Diode |
| - | Rear Window Defrost Relay |
| - | Blower Motor Relay |
| - | Stater Relay |
| - | A/C Clutch Relay |
| - | High Speed Engine Cooling Fan Relay |
| - | A/C Compressor Clutch Diode |
| - | Low Speed Engine Cooling Fan Relay |
| - | Fog Lamp Relay |
| - | Convertible Top Raise Relay |
| - | Luggage Compartment Lid Release Relay |
| - | Convertible Top Lower Relay |
Mustang Boss 302 2010 Primary Fuse Panel/Board – Fuse Symbol Map
