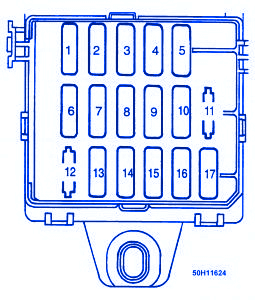

Mitsubishi Nimbus 2003 Mini Fuse Box/Block Circuit Breaker Diagram

Fuse Symbol	Amps	Colour	Fuse Map
1	25A	Yellow	Blower Motor
2	10A	Red	Back-Up Lights, Buzer Assembly & Combination Meter (3 A/T), SRS Air Bag Control Unit
3	10A	Red	Buzzer Assembly & Combination Meter, Auto-Cruise Control Main Switch
4	15A	Blue	Cigarette Lighter, Remote Controled Mirror
5	10A	Red	Radio, Clock, Auto-Cruise Control Unit
6	15A	Blue	Stoplight
7	10A	Red	Turn Signal and Hazard Flasher Unit, SRS Air Bag Control Unit
8	15A	Blue	-(1993)
	20A	Yellow	Door Lock Relay, Door Lock Control Unit(1994)
9	10A	Red	Horn
10	15A	Blue	-
11	-	-	Not Used
12	-	-	Not Used
13	-	-	Not Used
14	10A	Red	Dome Light, Luggage Compartment Light, Clock, Radio, Combination Meter, Door Lock Control Unit, Engine Control Module, Transaxle Control Module
15	10A	Red	Blower Motor Relay, Power Window Relay, Defogger Relay, Auto Compressor Control Unit, ABSA Power Relay, ABS Valve Relay, Buzzer Assembly, Auto-Cruise Control Unit and Automatic Seat Belt Control Unit
16	-	-	Not Used
17	10A	Red	Combination Meter (4 A/T), Transaxle Control Module

Mitsubishi Nimbus 2003 Mini Fuse Panel/Board – Fuse Symbol Map
