Mitsubishi Mirage 1999 Mini Fuse Box/Block Circuit Breaker Diagram

Mitsubishi Mirage 1999 Mini Fuse Box/Block Circuit Breaker Diagram

Fuse SymbolAmpsColourFuse Map
125AYellowBlower Motor
210ARedBack-Up Lights, Buzer Assembly & Combination Meter (3 A/T), SRS Air Bag Control Unit
310ARedBuzzer Assembly & Combination Meter, Auto-Cruise Control Main Switch
415ABlueCigarette Lighter, Remote Controled Mirror
510ARedRadio, Clock, Auto-Cruise Control Unit
615ABlueStoplight
710ARedTurn Signal and Hazard Flasher Unit, SRS Air Bag Control Unit
815ABlue-(1993)
20AYellowDoor Lock Relay, Door Lock Control Unit(1994)
910ARedHorn
1015ABlue-
11--Not Used
12--Not Used
13--Not Used
1410ARedDome Light, Luggage Compartment Light, Clock, Radio, Combination Meter, Door Lock Control Unit, Engine Control Module, Transaxle Control Module
1510ARedBlower Motor Relay, Power Window Relay, Defogger Relay, Auto Compressor Control Unit, ABSA Power Relay, ABS Valve Relay, Buzzer Assembly, Auto-Cruise Control Unit and Automatic Seat Belt Control Unit
16--Not Used
1710ARedCombination Meter (4 A/T), Transaxle Control Module

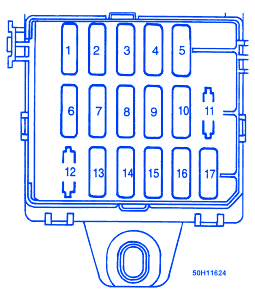

Mitsubishi Mirage 1999 Mini Fuse Panel/Board – Fuse Symbol Map
