Mercy W140S-Class 1994 Arrangement Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Consumers |
|---|---|
| 15 | Combination Relay, HeadL, Flasher, Wipe/Wash System, Switch F, Heat, Rear Window, (Airbag Fault Indicat) |
| 16 | Cigar Lighter, Glove Comp, Light |
| 17 | Instrum, Cluster, Turn Signal/Hazard Warn, Flasher, Ceiling Light,(Steering Angle Sensor) |
| 18 | Heating Control,(Trip Computer) |
| 18 | (Automatic Climate Control, Trip Coputer) |
| 19 | (Trailer Control Unit) |
| 20 | Control Unit, Heating |
| 20 | (Control Unit and A/C Compressor, Automatic Climate Control) |
| 21 | Heating Wipe/Wash System, Outside Mirror, Tr Oil Cooler, (Control Unit A/C) |
| 22 | Radio, Dual-Spring Belt Control, (Front Seat Heating, Trip Computer) |
| 23 | Stop Lamp (ASR Switch, Tempomat-Cruise Control) |
| 24 | Instrument Cluster, Bulb Control Unit, Ceiling Light Magnetic Clutch-Air Pump, Ati-Dazzle-Device |
| 25 | Turn Signal Control, Fanfare Horns, Back-up Lamp, Automatic Transmission |
| 26 | Fog Lamp |
| 27 | (Trailer Towing Device) |
| 28 | Automatic Aerial |
| 29 | (Load Current, Front Seat Heating) |
| 30 | Seat Adjustm Memory, Steering Wheel/Mirror Adjustm memory, Steering Wheel Adjustment, Mirror Adjustm |
| 31 | (Rear Seat Bench, Head Restraints)Not For Coupe |
| 31 | (Individual Rear Seat With Head Reatraint, Left)Not For Coupe |
| 32 | (Individual Rear Seat With Head Reatraint, right)Not For Coupe |
| 32 | Rear Head Restraints Left, Right(Only Coupe) |
| 33 | (Control Unit, Auxiliary Heating |
| 34 | Safety Belt Handover Arm9 (Coupe),(Front Seat Heater) |
| 35 | (Sun Blind), Relay Comfort Circuitry |
| 36 | Vacant |
| 37 | (Driver´s Seat Adjustment) |
| 38 | (Driver´s Seat Adjustment) |
| 39 | Vacant |
| 40 | (Front Passenger Seat Adjustment) |
| 41 | (Front Passenger Seat Adjustment) |

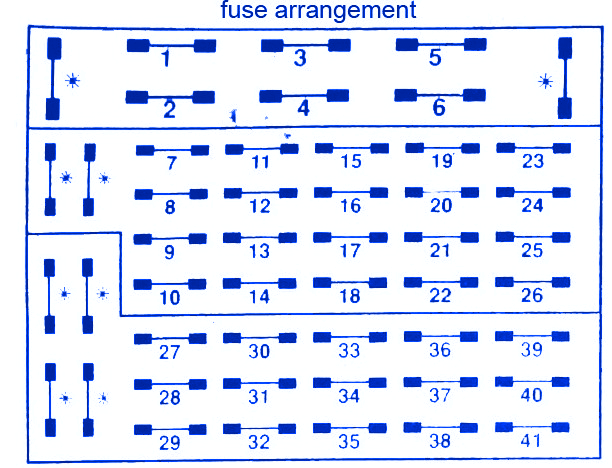

Mercy W140S-Class 1994 Arrangement Fuse Panel/Board – Fuse Symbol Map
