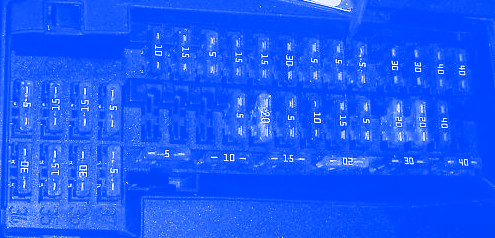

Mercy R170 1999 Front Engine Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map |
|---|---|
| 1 | (Telephone), Garage Door Opening Signal, E-Call |
| 2 | Control Unit Air-Bag, Control Unit Automatic Child Seat Recognition System |
| 3 | Indicator Safety Restraint System, Indicator Automatic Child Seat Recognition System |
| 4 | Wiper Motor |
| 5 | Radio |
| 6 | Exterior Mirror Adjustment Left and Right |
| 7 | Soft Top Control Indicator, (Electronic Transmission Control)(Park/Reversing Lock) |
| 8 | Radio |
| 9 | Roof Light, Horn, Anti-Theft Alarm, Trunk Light |
| 10 | (Temporat(Cruise Control)), (Headlamp Range Xenon) |
| 11 | Ignition Coil |
| 12 | Washer Liquid Heater, Washer Nozzle Heater |
| 13 | Diagnostic Socket (38 Pin-Type), Telephone, E-Call |
| 14 | Soundbooster |
| 15 | Tempmatic, Auxiliiary Water Pump |
| 16 | ABS/ESP |
| 17 | ABS/ESP |
| 18 | Spare |
| 19 | Power Window Front |
| 20 | Power Window Rear |
| 21 | Seat Adjustment Right Side |
| 22 | Seat Adjustment Left Side |
| 23 | Spare |
| 24 | Hydraulic Unit |
| 25 | Penumatic Control Unit, Rear Window Defroster |
| 26 | Central Locking |
| 30 | Seat Heater |
| 31 | Cigar Lighter, Glove Compartment Light |
| 32 | Wiper, Washer Pump, Headlamp Flasher |
| 33 | Tempmatic |
| 34 | Seat Heater |
| 35 | Radio Frequency Remote Control, Heated Warning Flasher Instrument Cluster, Tempmatic |
| 36 | Tempmatic |
| 37 | Circulating Air, Instrument Cluster Radio Frequancy Remote Control, Tempmatic |
Mercy R170 1999 Front Engine Fuse Panel/Board – Fuse Symbol Map
