Mercy CLS 500 2007 Under Dash Fuse Box/Block Circuit Breaker Diagram

Mercy CLS 500 2007 Under Dash Fuse Box/Block Circuit Breaker Diagram

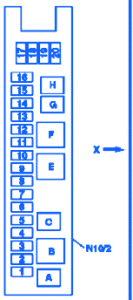

RelaysDesignation
AValid for Engine 113,967,272(up to 31.5.06), Fuel Pump Relay(N 10/2KA)
AFuel Pump Relay (N10/2KA)(as of 1.6.06)
AValid for Engine 113,967,272(up to 31.5.06), Charger Air Cooler Circulation Pump Relay (N10/2KA)
ACharger Air Cooler Circulation Pump Relay (N10/2KA)(only with Engine 156)(as of 1.6.06)
BRelay2, Terminal 15R(N10/2KB)
CSpare Relay 2 (N10/2KC)
DRear Wiper Relay(N10/2KD)
EHeated Rear Window Relay(N10/2KE)
FRelay1, Terminal 15R(N10/2KF)
GFuel Filler Cap Polarity Reverser Relay1(N10/2KG)
HFuel Filler Cap Polarity Reverser Relay2(N10/2KH)

Mercy CLS 500 2007 Under Dash Fuse Panel/Board – Fuse Symbol Map
