Relays | Designation |
---|---|
A | Valid for Engine 113,967,272(up to 31.5.06), Fuel Pump Relay(N 10/2KA) |
A | Fuel Pump Relay (N10/2KA)(as of 1.6.06) |
A | Valid for Engine 113,967,272(up to 31.5.06), Charger Air Cooler Circulation Pump Relay (N10/2KA) |
A | Charger Air Cooler Circulation Pump Relay (N10/2KA)(only with Engine 156)(as of 1.6.06) |
B | Relay2, Terminal 15R(N10/2KB) |
C | Spare Relay 2 (N10/2KC) |
D | Rear Wiper Relay(N10/2KD) |
E | Heated Rear Window Relay(N10/2KE) |
F | Relay1, Terminal 15R(N10/2KF) |
G | Fuel Filler Cap Polarity Reverser Relay1(N10/2KG) |
H | Fuel Filler Cap Polarity Reverser Relay2(N10/2KH) |

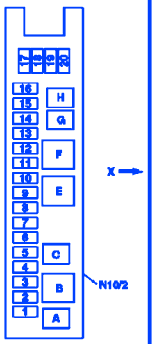

Mercy CLS.500 2006 Inside Fuse Panel/Board – Fuse Symbol Map
