Mercury Mystique 1996 High Beam Fuse Box/Block Circuit Breaker Diagram
| RELAY MAP | COLOR |
|---|---|
| HI BEAM HEADLAMP RELAY | WHITE |
| PCM POWER RELAY | BROWN |
| HORN RELAY | BROWN |
| FUEL PUMP RELAY | BROWN |
| LO BEAM HEADLAMP RELAY | WHITE |
| STARTER RELAY | YELLOW |
| A/C WIDE OPEN THROTTLE RELAY | BLUE |
| A/C CLUTCH RELAY | YELLOW |
| LOW SPEED ENGINE COOLING FAN RELAY | DARK GREEN |
| DAYTIME RUNNING LAMPS RELAY | WHITE |
| HIGH SPEED ENGINE COOLING FAN RELAY | BLACK |

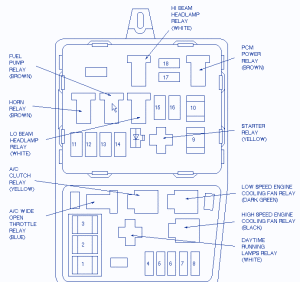

Mercury Mystique 1996 High Beam Fuse Panel/Board – Fuse Symbol Map
