Mercury Mountaineer 2005 Engine Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
|---|---|---|
| 1 | 10A | Backup Lamps, Electrochromatic Mirrors |
| 2 | 20A | Horn |
| 3 | 15A | Battery Saver, Interior Lamps, Puddle Lamps, Trunk Lamp, Power Windows |
| 4 | 15A | Park Lamps, Side Markers, License Plate Lamps |
| 5 | - | Not Used |
| 6 | - | Not Used |
| 7 | - | Not Used |
| 8 | 30A | Rear Window Defroster |
| 9 | 10A | Heated Mirrors |
| 10 | 30A | Starter Coil, PCM |
| 11 | 15A | High Beams |
| 12 | 7.5A | Delay Accessories: Radio Head Units, Moonroof, Lock Switch Illumination, Electrochromatic mirrors |
| 13 | 7.5A | Cluster, KAM-PCM, Analog Clock, Climate Control Head Units, Canister Vent Solenoid |
| 14 | 15A | Washer Pump |
| 15 | 20A | Cigar Lighter |
| 16 | 15A | Door Lock Actuator, Decklid Lock Solenoid |
| 17 | 20A | Subwoofer |
| 18 | 20A | Radio Head Units, OBDII Connector |
| 19 | - | Not Used |
| 20 | 7.5A | Power Mirrors |
| 21 | 7.5A | Stop Lamps |
| 22 | 7.5A | Audio |
| 23 | 7.5A | Wiper Relay Coil, Cluster Logic |
| 24 | 7.5A | OCS (Passenger's Seat) PAD Indicator |
| 25 | 7.5A | RCM |
| 26 | 7.5A | PATS Transceiver, Brake Shift Interlock Solenoid, Brake Pedal Switch |
| 27 | 7.5A | Cluster, Climate Control Head Units |
| 28 | 10A | ABS/Traction Control, Heated Seats, Compass |
| C/B | 30A | Power Windows, Delayed Accessory (SJB Fuse12) |

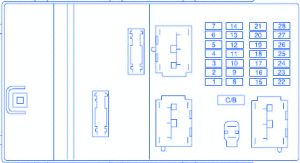

Mercury Mountaineer 2005 Engine Fuse Panel/Board – Fuse Symbol Map
