RELAY CODERELAY USE
AK5 Power Seat Relay
BK10 Auxiliary Fan Preresistor Relay, K9k1 Auxiliary Fan Relay
CK9 Auxiliary Fan Relay, K9k2 Auxiliary Fan Relay, Preresistor
DK2 Headlamp Washer Relay
EF14 Auxiliary Fuse Holder, K17 Air Injection Relay
FK4 Power Window Relay, K24 Convenience Relay
GK18 Seat Belt Warning Relay, K29/1 First Gear Start Relay
HN10 Combination Relay
IV1 Power Seat Diode, V5 Parking Brake/ASR/Electronic Accelerator
KN7 Exterior Lamp Failure Monitoring Unit

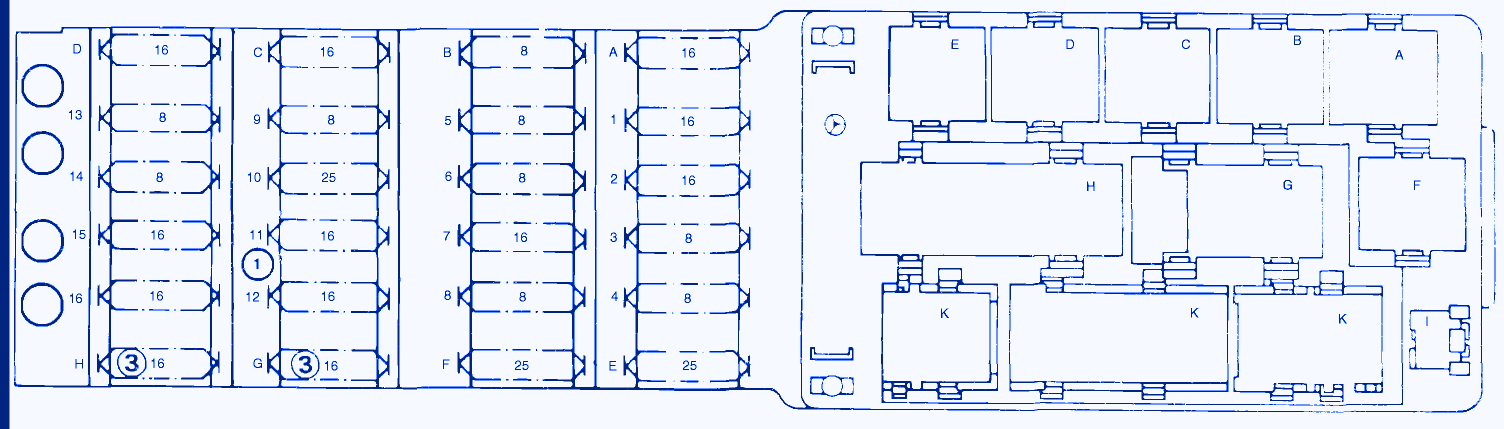

Mercedes C-230 2003 Injection Fuse Panel/Board – Fuse Symbol Map
