Mercedes Benz W124 1997 Mini Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | AMPS | FUSE MAP |
|---|---|---|
| 1 | 15A | Right Side Light, Right Rear Light |
| 2 | 15A | Right High Beam Head Light |
| 3 | 15A | Left High-Beam Head Light, High Beam Tell Tail Light |
| 4 | 15A | Reversing Light, Horn |
| 5 | 15A | Brake Lights, Heated Windscreen, Washer Jet |
| 6 | 20A | Windscreen and Rear-Window Wipers, Flashing Turn Indicators |
| 7 | 15A | Instrument Panel, Relay for Optional Extras (Terminal 15) |
| 8 | 20A | Interior Lights, Cigarette Lighter, Radio (Terminal 30) |
| 9 | 15A | Clock, Flashing Turn Indicators/hazzard Warning Flashers |
| 10 | 15A | Instrument Lighting, License Plate Light |
| 11 | 15A | Left Side Light, Left Rear Light |
| 12 | 15A | Right Low-Beam Head Light, Rear Fog Light |
| 13 | 15A | Left Low-Beam Head Light |
| 14 | 15A | Fog Light |
| 15 | 15A | Radio (Terminal 15R), Air Bag Monitor |
| 16 | 10A | ABS/ABD |
| 17 | 10A | Air Conditioning |
| 18 | 10A | Air Conditioning (Terminal 30) |

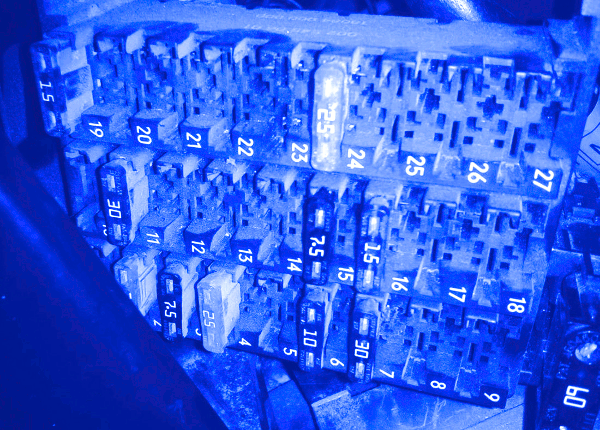

Mercedes Benz W124 1997 Mini Fuse Panel/Board – Fuse Symbol Map
