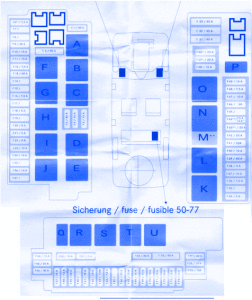

Mercedes-Benz S500 2001 Fuse Box/Block Circuit Breaker Diagram
| Nr./No. | Description |
|---|---|
| Relay In Engine Compartment, Left | |
| A | Wiper Heating, end Position |
| B | Binding Post 15 |
| C | Binding Post 15R |
| D | Steering Column Jacket Horisontal 1 |
| E | Steering Column Jacket Horisontal 2 |
| F | Recirculating Pump |
| G | Wiper Speed 1/2 |
| H | Wiper ON/OFF |
| I | Steering Column Jacket Vertical 1 |
| J | Steering Column Jacket Vertical 2 |
| Relay In Engine Compartment, Right | |
| K | Motronic/ Chassis |
| L | Choke |
| M | Diesel Control System |
| N | Secondary Air Pump |
| O | Air Suspension |
| P | Horn |
| Relay Beneath Rear Seat, Right | |
| Q | Rear Blind |
| R | Tow-Away Protection EDW |
| S | Binding Post 15 |
| T | Fuel Pump |
| U | Rear Window Heater |
Mercedes-Benz S500 2001 Fuse Panel/Board – Fuse Symbol Map
