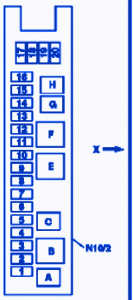

Mercedes Benz CLS500 2007 Fuse Box/Block Circuit Breaker Diagram
| Relays | Designation |
|---|---|
| A | Valid for Engine 113,967,272(up to 31.5.06), Fuel Pump Relay(N 10/2KA) |
| A | Fuel Pump Relay (N10/2KA)(as of 1.6.06) |
| A | Valid for Engine 113,967,272(up to 31.5.06), Charger Air Cooler Circulation Pump Relay (N10/2KA) |
| A | Charger Air Cooler Circulation Pump Relay (N10/2KA)(only with Engine 156)(as of 1.6.06) |
| B | Relay2, Terminal 15R(N10/2KB) |
| C | Spare Relay 2 (N10/2KC) |
| D | Rear Wiper Relay(N10/2KD) |
| E | Heated Rear Window Relay(N10/2KE) |
| F | Relay1, Terminal 15R(N10/2KF) |
| G | Fuel Filler Cap Polarity Reverser Relay1(N10/2KG) |
| H | Fuel Filler Cap Polarity Reverser Relay2(N10/2KH) |
Mercedes Benz CLS500 2007 Fuse Panel/Board – Fuse Symbol Map
